imageFORCE C5100 Series
- 商品介紹
- 產品規格

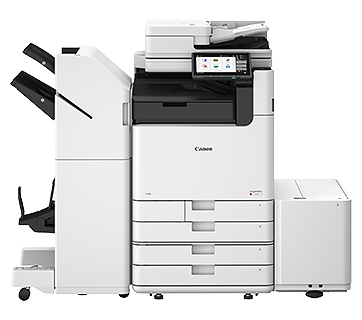

imageFORCE C5100 系列
絢麗色彩，結合商務級安全防護
imageFORCE C5100 系列多功能複合機透過創新技術如 D² 曝光技術，提供鮮明、高品質的色彩與卓越的輸出效果。專為現代企業設計，無縫連接至雲端工作流程，同時提供企業級的安全防護。旨在進一步提高生產力，並協助企業轉營至智能工作環境
- A3 多功能彩色複合機
- 輸出最高可達 每分鐘 70/70 (彩色/黑白)
產品特色
相關網頁
線上說明書
型錄下載
手機列印/平板列印支援
Canon PRINT 超越列印的解決方案
Canon PRINT 應用程式提供一系列功能，可簡化直接從行動
裝置列印和管理文件的流程。它結合了行動列印、雲端連結存取、文件影像擷取和編輯工具，為使用者的列印需求提供全面的解決方案。
佳菱推薦您下載使用 Canon Print
讓您的行動裝置擁有列印及掃描等功能
支援與驅動程式下載
我已閱讀和瞭解以下免責聲明並希望下載指定軟體。
推薦的Windows印表機驅動程式
Canon Generic Plus UFRII 印表機驅動程式（64位元）
支援各種裝置的通用UFR II印表機驅動程式。透過變更印表機連接埠和裝置資訊設置，您可以對所有型號使用相同的驅動程式。Windows印表機驅動程式
Canon Generic Plus UFRII 印表機驅動程式（64位元）
支援各種裝置的通用UFR II印表機驅動程式。透過變更印表機連接埠和裝置資訊設置，您可以對所有型號使用相同的驅動程式。Canon Generic Plus UFRII 印表機驅動程式（32位元）
支援各種裝置的通用UFR II印表機驅動程式。透過變更印表機連接埠和裝置資訊設置，您可以對所有型號使用相同的驅動程式。Windows傳真驅動程式
Canon Generic FAX傳真驅動程式（64位元）
支援各種裝置的通用傳真驅動程式。透過變更印表機連接埠和裝置資訊設置，您可以對所有型號使用相同的驅動程式。Canon Generic FAX傳真驅動程式（32位元）
支援各種裝置的通用傳真驅動程式。透過變更印表機連接埠和裝置資訊設置，您可以對所有型號使用相同的驅動程式。Mac印表機驅動程式下載
適用於Mac Canon UFR II/UFR II LT印表機驅動程式
Mac傳真驅動程式下載
適用於Mac Canon FAX Driver傳真驅動程式
更多驅動程式支援
驅動程式下載 - 免責聲明
本網站所提供之 Canon 印表機與多功能事務機相關驅動程式、軟體、檔案、文件、操作手冊、使用說明書或其他相關資料（以下統稱「內容」），其著作權、所有權及智慧財產權均屬於 Canon Inc. 或其相關權利人所有。
本網站僅為方便使用者取得 Canon 官方相關資源而提供整理與下載服務，所有內容均依 Canon 官方所提供之「原樣（AS IS）」方式提供。本網站不對內容之正確性、完整性、可靠性或適用性提供任何明示或默示之保證。
使用者下載、安裝或使用任何內容所可能產生之風險，應由使用者自行承擔。對於因使用或無法使用相關內容所造成之任何直接或間接損害（包括但不限於資料遺失、系統故障、營業損失等），佳菱概不負任何責任。
除法律允許範圍外，使用者不得未經權利人授權而對內容進行散布、轉售、出租、公開傳輸、修改、重製、反向工程或其他侵害智慧財產權之行為。
若您下載或使用本網站所提供之內容，即表示您已閱讀、理解並同意遵守上述聲明及相關法律規定。
相關機型
iF 5100 iF C5100 iF C5140 iF C5150 iF C5160 iF C5170 imageFORCE C5100 imageFORCE C5140 imageFORCE C5150 imageFORCE C5160 imageFORCE C5170 iR-ADV C5840 iR-ADV C5850 iR-ADV C5860 iR-ADV C5870 iR-ADV C5735 iR-ADV C5740 iR-ADV C5750 iR-ADV C5760 iR-ADV C5535 iR-ADV C5540 iR-ADV C5550 iR-ADV C5560 iR-ADV C5235 iR-ADV C5240 iR-ADV C5250 iR-ADV C5255 iR-ADV C5030 iR-ADV C5035 iR-ADV C5045 iR-ADV C5051
台南高雄影印機事務機印表機出租、彩色黑白影印機事務機印表機出租、碎紙機、電腦週邊商品、事務機租賃、共同供應契約、中信局採購
.table-specifications{
width:100% !important;
max-width:100%;
}
主機
|
機器類型 |
A3 Colour Multifunctional |
|
核心功能 |
列印, 影印, 掃描, 傳送, 儲存 , 傳真(選配) |
|
處理器 |
雙核心處理器 |
|
控制面板 |
10.1" TFT LCD WSVGA Colour Touch panel |
|
記憶體 |
Standard: RAM: 6.0 GB |
|
儲存空間 |
Standard: (SSD) 256 GB |
|
介面 連接 |
NETWORK |
|
紙張供應容量 |
Standard: 1,200 sheets |
|
紙張輸出容量 |
Maximum: 3,450 Sheets (with Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2 and 3rd Copy Tray Kit-A1) |
|
Finishing Capabilities*1 |
Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, V-fold, C-fold, Z-fold |
|
Supported Media Types |
Multi-purpose Tray: |
|
Supported Media Sizes |
Multi-purpose Tray: |
|
Supported Media Weights |
Multi-purpose Tray: 52 to 300 gsm |
|
Warm-up Time |
Quick Startup Mode: 4 seconds or less*3 |
|
Dimensions (W x D x H) |
620 x 722 x 937 mm |
|
Installation Space (W x D) |
Basic: 1,050 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open) |
|
Weight*5 |
Approx. 105 kg |
Print Specifications
|
Print Speed (BW and CL) |
imageFORCE C5170 |
|
Print Resolution (dpi) |
4,800 x 2,400 |
|
Page Description Languages |
Standard: UFR II, PCL6/PCL5 |
|
Direct Print |
Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
|
Printing from Mobile and Cloud |
AirPrint, Mopria®, IPP Everywhere, Canon PRINT, uniFLOW Online, Universal Print and Cloud Connector |
|
OS Standard Printing |
Android/Windows® 10/Windows® 11/Chrome OS/macOS (11.2.2 or later) /iOS (15.2 or later)/iPadOS |
|
Fonts |
PS fonts: 136 Roman |
|
Operating System |
UFRII: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later) |
Copy Specifications
|
Copy Speed (BW and CL) |
imageFORCE C5170 |
|
First-Copy-Out Time (A4, BW/CL) |
imageFORCE C5170: |
|
Copy Resolution (dpi) |
600 x 600 |
|
Multiple Copies |
Up to 999 copies |
|
Copy Density |
Automatic or Manual (9 Levels) |
|
Magnification |
Variable zoom: 25% to 400% (1% Increments) |
Scan Specifications
|
Type |
Single-pass Duplexing Automatic Document Feeder*9 |
|
Document Feeder Paper Capacity |
Up to 200 Sheets |
|
Document Feeder Acceptable Paper Weight |
Document Feeder media weight: 38 to 220 gsm |
|
Supported Media Sizes |
Platen scanning size: Up to 297.0 x 431.8 mm |
|
Scan Speed (ipm, BW/CL, A4) |
1-sided Scanning: |
|
Scan Resolution (dpi) |
600 x 600 |
|
Pull Scan Specifications |
Colour Network ScanGear2 for both TWAIN and WIA |
Send Specifications
|
Destination |
Standard: E-mail/Internet FAX (SMTP*10), SMB, FTP, WebDAV, Mail Box |
|
Address Book |
LDAP (2,000)/Local (1,600)/Speed dial (200) |
|
Communication Protocol |
File: FTP(TCP/IP), SMB3.1.1 (TCP/IP), WebDAV |
|
File Format |
TIFF (MMR), JPEG*11, PDF (Compact, Searchable, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
Fax Specifications
|
Maximum Number of Connection Lines |
1 |
|
Modem Speed |
Super G3: 33.6 kbps |
|
Compression Method |
MH, MR, MMR, JBIG |
|
Resolution (dpi) |
400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
|
Sending / Receiving Size |
Sending: A3, A4, A4R, A5*12, A5R*12, A6R*12, B4, B5*13, B5R*12 |
|
FAX Memory |
Up to 30,000 pages (2,000 jobs) |
|
Speed Dials |
Max. 200 |
|
Group Dials / Destinations |
Max. 199 dials |
|
Sequential Broadcast |
Max. 256 addresses |
|
Memory Backup |
Yes |
Store Specifications
|
Mail Box (Number supported) |
100 User Inboxes |
|
Advanced Box |
Communication Protocol: SMB or WebDAV |
|
Advanced Box Available Disc Space |
Standard: 16 GB |
Security Specifications
|
Authentication & Access Control |
User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Cloud Connector (PIN Login), Microsoft Entra ID (PIN Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control) |
|
Document Security |
Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*14), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark |
|
Network Security |
TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 (using Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Space in the MFP, Scan and Send-Virus Concerns for E-mail Reception |
|
Device Security |
Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification*15 |
|
Device Management & Auditing |
Administrator Password, Digital Certificate And Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (SIEM: Security Information and Event Management), Image Data Logging, Security Policy Setting |
Environmental Specifications
|
Operating Environment |
Temperature: 10 to 30⁰C |
|
Power Source |
220-240 V, 50/60 Hz, 6 A |
|
Power Consumption |
Maximum: |
Consumables
|
Toner Cartridges |
NPG-1001 BK/C/M/Y |
|
Toner Yield |
NPG-1001 BK: 63,000 pages |
Software & Printer Management
|
Tracking and Reporting |
uniFLOW Online |
|
Remote Management Tools |
iW Enterprise Management Console |
|
Scanning Software |
Colour Network ScanGear 2 |
|
Optimisation Tools |
Canon Driver Configuration Tool |
|
Platform |
MEAP (Multifunctional Embedded Application Platform) |
Fiery Print Controller Specifications (Embedded)
|
Optional / Standard |
Optional on all models |
|
Name |
imagePASS-T1 (Embedded) |
|
Print Resolution (dpi) |
1,200 x 1,200, 600 x 600 |
|
Page Description Language(s) |
Adobe PS3, PCL6, Adobe PDF Print Engine (Optional) |
|
Memory |
8 GB (4 GB x 2) |
|
Hard Disk Drive |
500 GB SATA |
|
System |
FS500 |
|
Fonts |
PS: 138 Fonts |
|
Supported Operating Systems |
Windows® 10 32 bit*17 and 64 bit/Windows® 11/Windows® Server 2016/Windows® Server 2019/Windows® Server 2022/macOS 12, 13, 14 |
|
Interface |
2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB 3.0 x 2 (Rear) |
|
Network Protocols |
TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP) |
|
Direct Print |
PDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional) |
|
VDP |
FreeForm v1, v2.1 |
|
Fiery Print Controller Standard Features |
Fiery Command WorkStation 7/Paper Catalog/Fiery Spot-On/Fiery Remote Scan |
|
Fiery Print Controller Options |
Fiery Impose/Fiery Compose/Fiery Impose and Compose/Fiery Automation package/Fiery Colour Right package/Fiery JobExpert and PDF Processing Kit |
|
HW Platform |
E500 |
|
Base OS |
Debian of Linux |
|
Power Source |
AC 100-240 V, 50/60 Hz; 1.5 A (100 V) - 1.0 A (240 V) |
|
Maximum Power Consumption |
55 W |
Paper Supply Options
|
Cassette Feeding Unit-AYl |
Paper Capacity: 2 x 550 sheets (80 gsm) |
|
High Capacity Cassette Feeding Unit-F1 |
Paper Capacity: 2,450 sheets (80 gsm) |
|
Paper Deck Unit-F2/F3 |
(Requires Cassette Feeding Unit-AY1 or High Capacity Cassette Feeding Unit-F1) |
Output Options*18
|
1st Copy Tray Kit-B1 (Standard) |
Capacity (with 80 gsm paper): |
|
Inner 2way Tray-M1 |
(Requires 1st Copy Tray Kit-B1) |
|
3rd Copy Tray Kit-A1 |
Capacity (with 80 gsm paper): |
|
Inner Finisher-N1 |
Tray Capacity (with 80 gsm paper): |
|
Staple Finisher-AB3 |
(Requires Buffer Pass Unit-R1) |
|
Paper Folding/Booklet Finisher-A2 |
(Requires Buffer Pass Unit-R1) |
|
Paper Folding Unit-L1 |
(Requires Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2) |
|
Inner 2/3 Hole Puncher-D1 |
(Requires the Inner Finisher-N1) |
|
Inner 2/4 Hole Puncher-D1 |
(Requires the Inner Finisher-N1) |
|
2/3 Hole Puncher Unit-A1 |
(Requires either the Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2) |
|
2/4 Hole Puncher Unit-A1 |
(Requires either the Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2) |
- Finishing capabilities vary depending on the options connected.
- Envelope Feeder Attachment (standard) is required.
- Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
- Time from device power-on, until copy ready (not print reservation).
- Including regular toner.
- 1-sided only.
- Optional PCL International Font Set-A1 is required.
- Optional Barcode Printing Kit-D1 is required.
- Multi-Sheet Feed Detection is supported.
- Available OAuth 2.0 authentication method on Microsoft 365 and Google Workspace.
- Only Single page.
- Sent as A4.
- Sent as B4 short.
- Requires uniFLOW Online / uniFLOW.
- Validation pending.
- 0.5 W is not available in all circumstances due to certain settings.
- Windows® 10 32 bit are supported by printer driver only.
- Paper capacity may vary with different paper type/size.
- Paper Folding Unit-L1 is required.
有關價格、規格、供貨情況及優惠方案等相關訊息，若有更改恕不另行通知。
就非 Canon 品牌之產品/服務有可能是由第三方製造商/供應商所生產或提供，而由 Canon 進行銷售。
官網中所標明的價格均是 NT$ 的建議零售價，若有更改恕不另行通知。
